FT Injector 820 lb/h GEN 2

Name: O-Ring/-6ORB / Set of 8 FT Injector 820 lb/h GEN 2
SKU: 5010109109-8
Price: 3800.0 USD

5010109129

$439.00

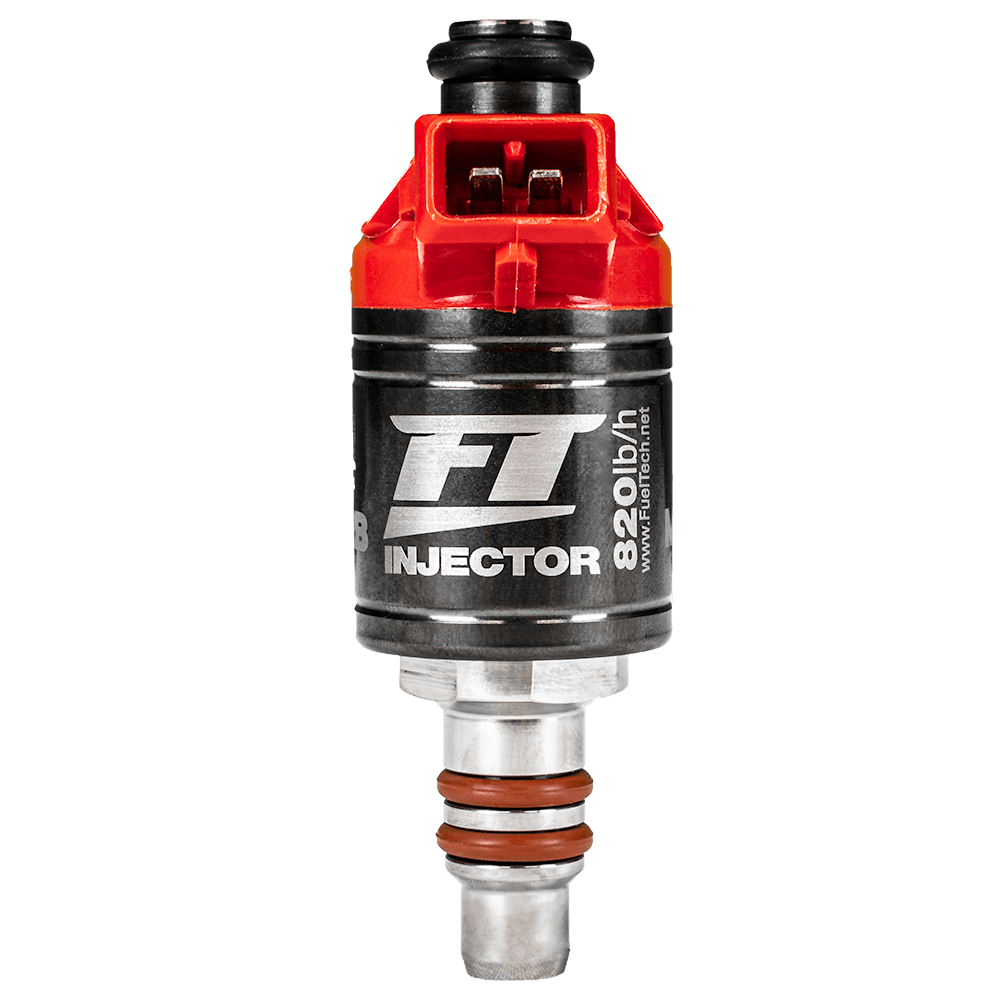

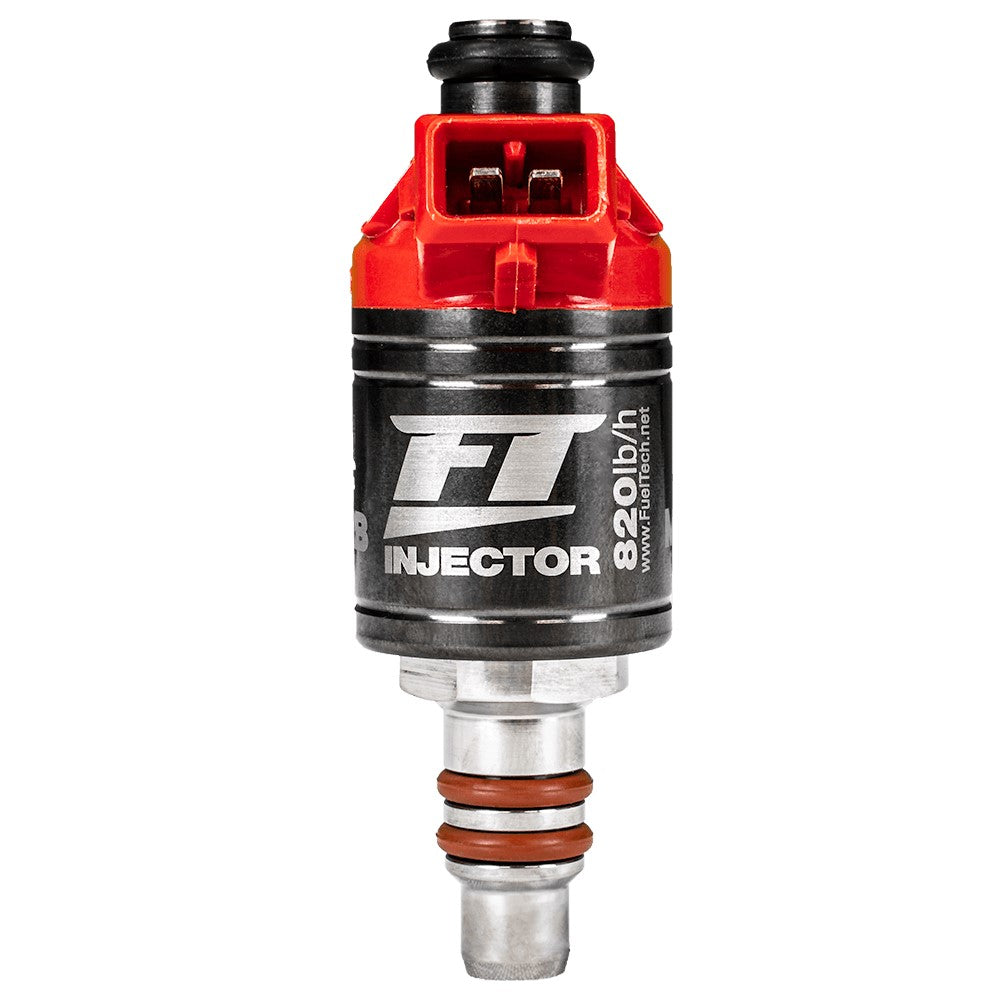

The GEN 2 FT Injector 820 lb/hr (5,880 cc/min @ 43.5 psi) is a low impedance, 1.5 Ohms, fuel injector from the FT Injector family. A Peak & Hold Driver, such as the 8A/2A Peak & Hold Driver or Peak & Hold PRO Injector Driver, is required. FT Injectors are compatible with any ECU and all available fuels (gasoline, ethanol, alcohol, nitromethane, nitropropane, MTBE and ETBE). Featuring EV1 connectors with silver plated terminals for superior conductivity and corrosion resistant internal components.

Key Generation 2 Upgrades:

New optimized internal coil
Next generation spray pattern
New needle geometry
Elimination of internal filter/screen
Shorter Dead-Time (faster and more precise response)
Improved idle control precision
Refined operation at low RPM
Greater stability across the entire operating range

DOWNLOAD MANUAL

DOWNLOAD CAD FILE

FEATURES

REAL flow, all injectors are tested, and calibrated to ensure linearity, repeatability and accuracy for all cylinders
It has internal components resistant to corrosion, guaranteed by the salinization test carried out on all raw material used
Reduce the number of injectors, connections and hoses in your project;
Compatible with any type of fuel (Gasoline, Ethanol, nitromethane, nitropropane, MTBE and ETBE)
Tested and approved on +4,000 horsepower engines
Compatible with any ECU on the market
Use outputs from your ECU (by reducing the number of injectors)
FuelTech warranty and support
Project developed prioritizing the quality and durability of the injector
