Peak & Hold 2A/0.5A Injector Driver

3010003323

$219.00 $229.00

Shipping Cut-Off:  USPS 9:30am EST / UPS 1:00pm EST

  • FuelTech’s Peak & Hold 2A/0.5A Injector Driver is a 4-channel low impedance driver unit that controls up to 4 injectors with impedance between 3 and 7 ohms. The mounting kit is included.
  •  Peak and Hold Manual

Features

  • Current control driver for low impedance injectors
  • 4 channels
  • Available in three current versions:
    8A/2A
    4A/1A
    2A/0.5A (Currently Viewing)

Technical Description

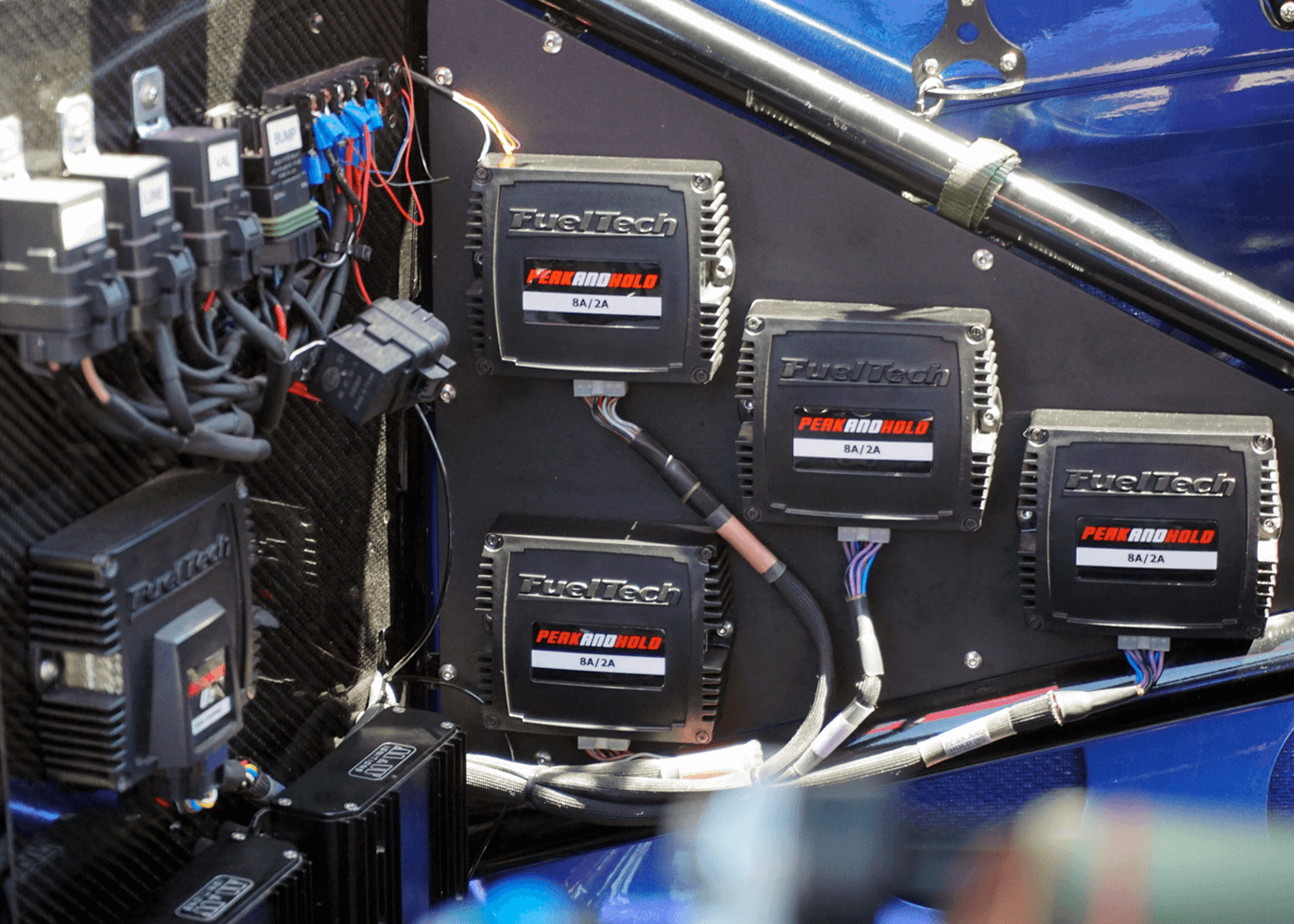

Peak and Hold 8A/2A
  • Controls up to 4 injectors with impedance below 1.5 ohm
  • 8 FT Injectors
  • 16 Bosch 160lb/h (1600cc) injectors (4 per channel)
  • 8 Siemens low impedance injectors (2 per channel)
  • 4 MSD low impedance injectors (2 per channel) (with 2 ohms impedance per injector)
Peak and Hold 4A/1A
  • Controls up to 4 injectors with 1.5 to 3 ohms of impedance
  • 8 Bosch 160lb/h (1600cc) injectors (2 per channel)
  • 4 Siemens 83lb/h injectors
  • 4 MSD injectors (with 2 ohms impedance per injector)
Peak and Hold 2A/0.5A (Currently Viewing)
  • Controls up to 4 injectors with 3 to 7 ohms of impedance
  • 4 Bosch 160lb/h (1600cc) injectors

Dimensions: 115 x 90 x 33mm

To determine which Peak & Hold you need

  1. Grab a multi-meter and select Ohms 200
  2. Touch the positive and negative leads of multi-meter together to measure resistance (record this number...i.e. measured 0.3)
  3. Then take the positive and negative leads from multi-meter and put on each terminal of the injector. Doesn't matter the order. Record this measurement
  4. Take the ohms measurement from Step 3 and then subtract the number you got in Step 2 (i.e. Step 3 4.8ohms - Step 2 0.3ohms = Total 4.5ohms)

High Impedance Injectors - Above 7ohms - No Peak and Hold Boxes are needed.
Peak and Hold 2A - 3ohms to 7ohms (Bosch 160lb/hr).
Peak and Hold 4A - Below 3ohms to 1.5ohms.
Peak and Hold 8A - Below 1.5ohms (FT Injector, Billet Atomizer*).
All low impedance Billet Atomizer Injectors manufactured after Nov. 2012 require 8A regardless of measured resistance.

*Billet Atomizer Injectors - Anything prior to serial # C300**** should only use the 4A/1A. This only applies to injectors manufactured prior to Nov. 2012.

Contents of Packaging

  • 1 Peak and Hold 2A/0.5A
  • 1 Operation and installation guide
  • 1 mounting kit (4 rubber mounts, 4 washers and 4 ¼” nuts)
  • 6ft Peak and Hold unterminated harness (optional)
  • 1 FuelTech black carbon fiber sticker
