16-Way CPC Connector Kit

5011100177

$110.00

Shipping Cut-Off: USPS 9:30am EST / UPS 1:00pm EST

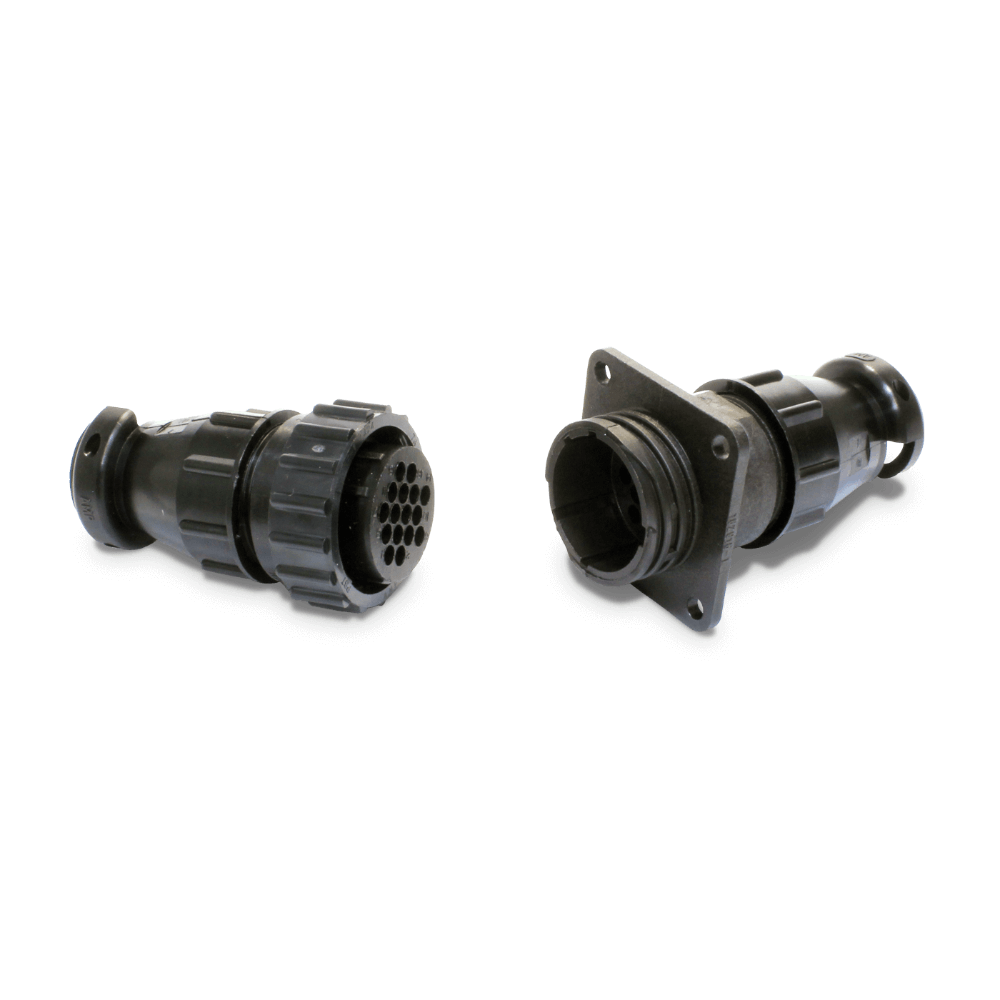

Whether you're building your own harness or modifying an existing one, this CPC connector kit will make it easy for you to pass wires through your firewall. Features a 13-amp max current per terminal and gold-plated terminals for superior conductivity.

Outer (harness) connector PN: 206037-1

Inner (dash) connector PN: 206036-1

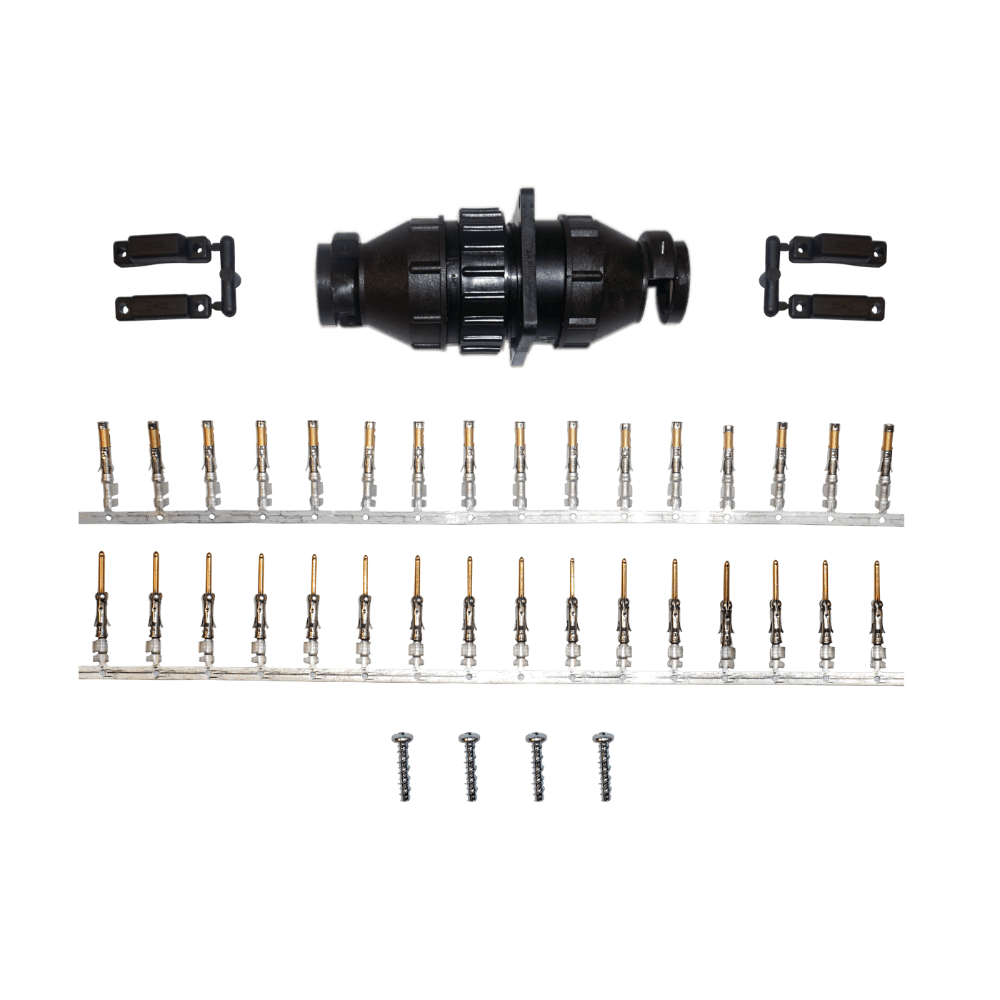

Kit Includes:

Male and female connectors w/ clamps
16 Male terminals, 14-18 AWG
16 Female terminals, 14-18 AWG

Inner (Dash Side) Connector Specifications and Cutout

Outer (Harness Sider) Connector Specifications and Cutout
