Travel Sensor PRO

5005100209 / 5011100155

$355.00

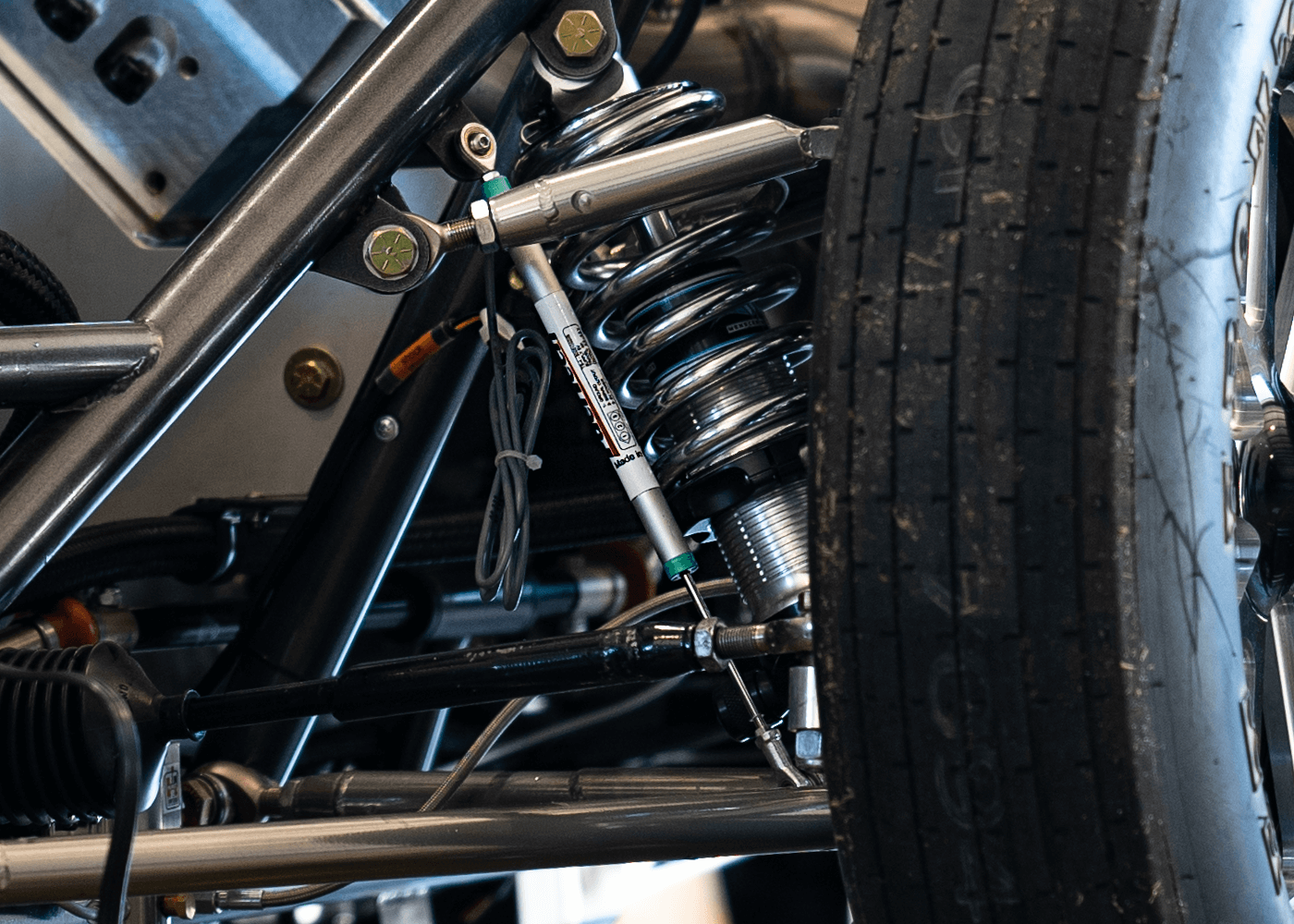

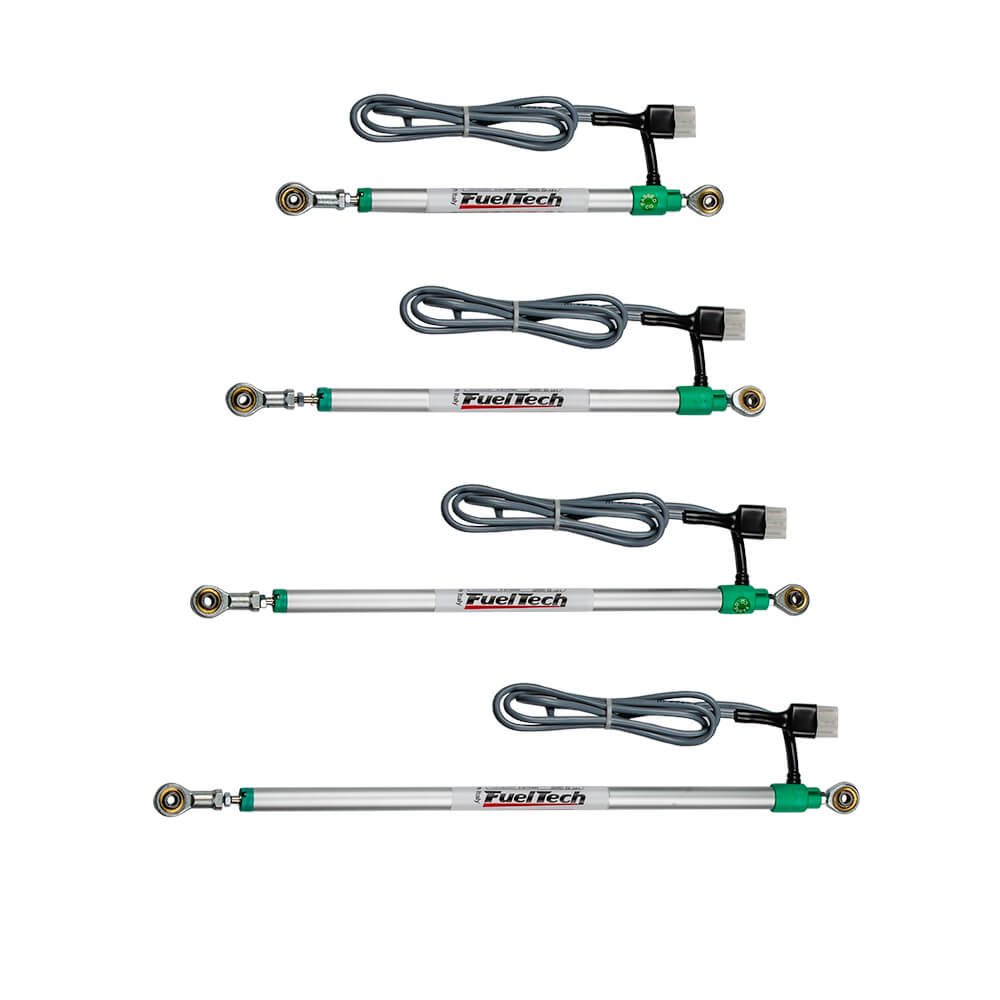

The best way of monitoring your vehicle`s suspension and body movements. Available travel lengths: 0-4", 0-6", 0-8" & 0-10".

Can be used with any FuelTech PowerFT & VisionFT ECU (FT450, FT550, FT600, FT700 & FT700PLUS)


Technical Description

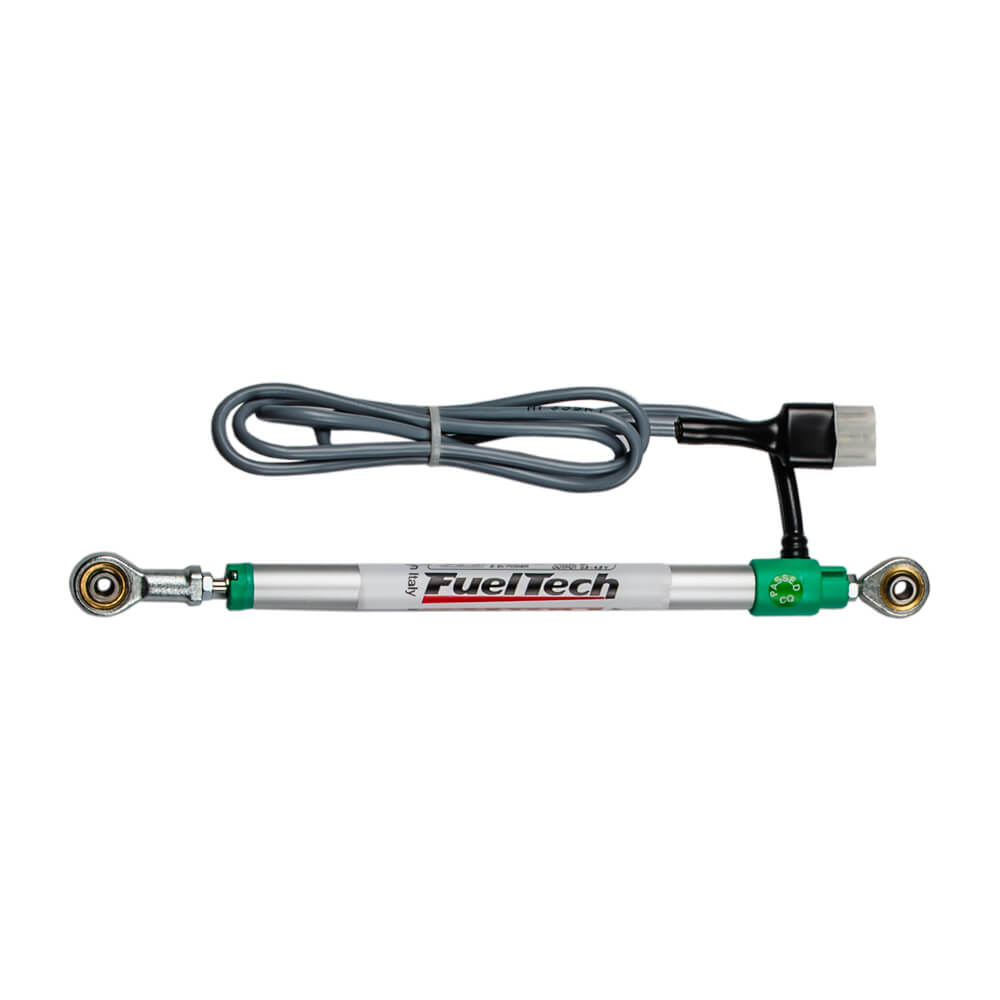

4" Travel Sensor:

  • Total Travel: 4"
  • Length Closed: 9"
  • Length Extended: 13"
  • Mounting: 5mm Heim joints
  • Cable Length: 41"

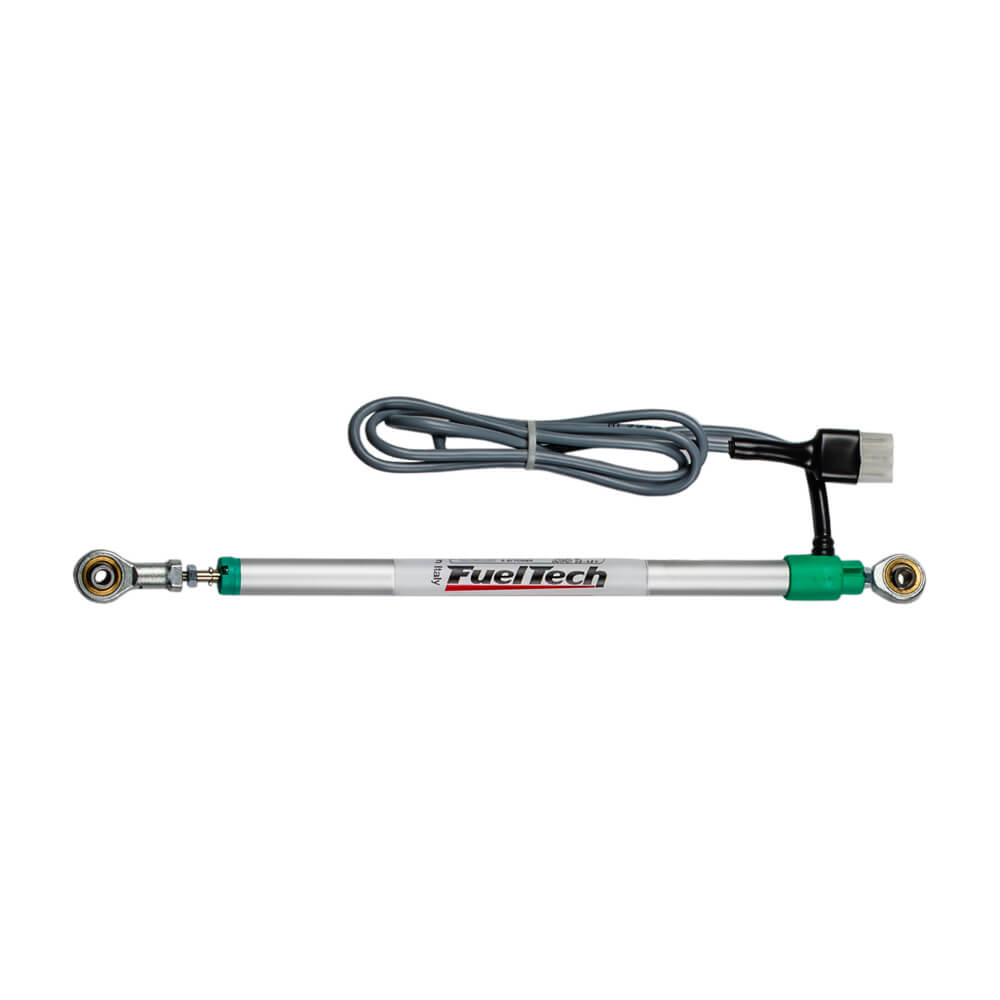

6" Travel Sensor:

  • Total Travel: 6"
  • Length Closed: 12"
  • Length Extended: 18"
  • Mounting: 5mm Heim joints
  • Cable Length: 41"

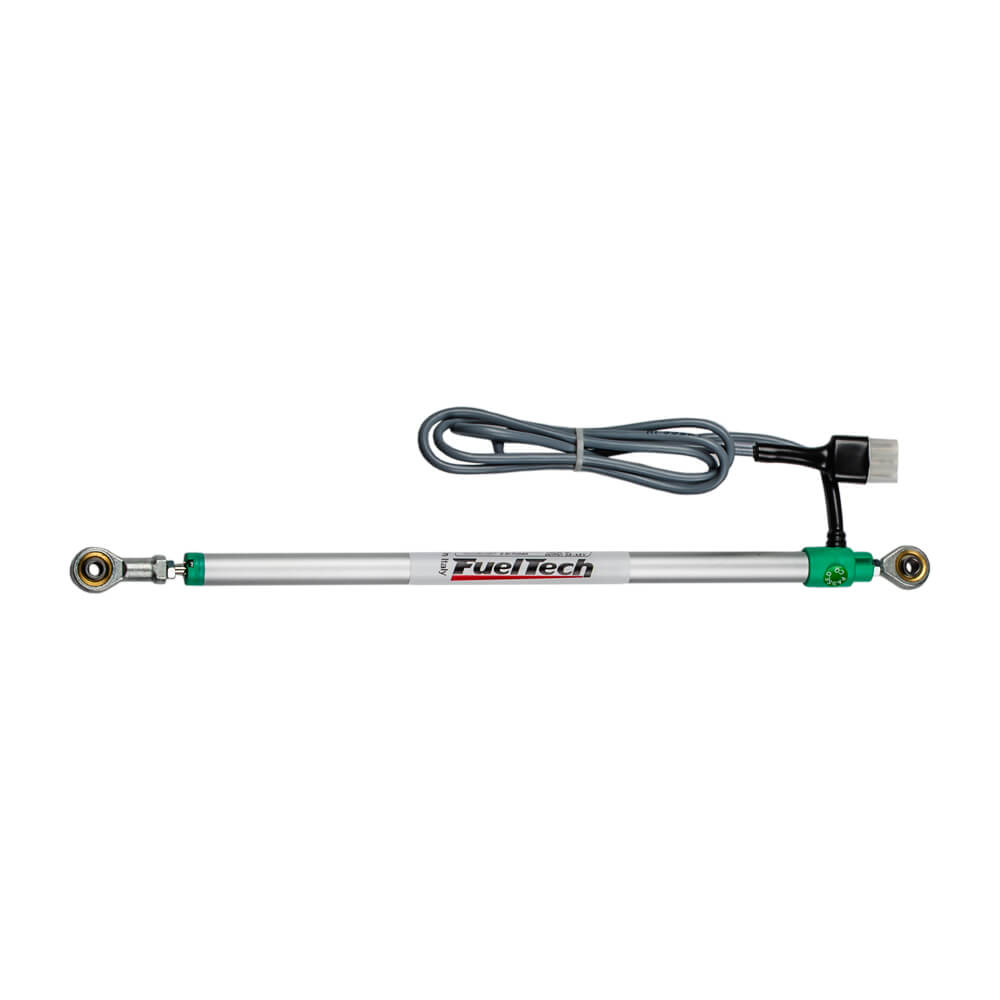

8" Travel Sensor:

  • Total Travel: 8"
  • Length Closed: 13"
  • Length Extended: 21"
  • Mounting: 5mm Heim joints
  • Cable Length: 41"

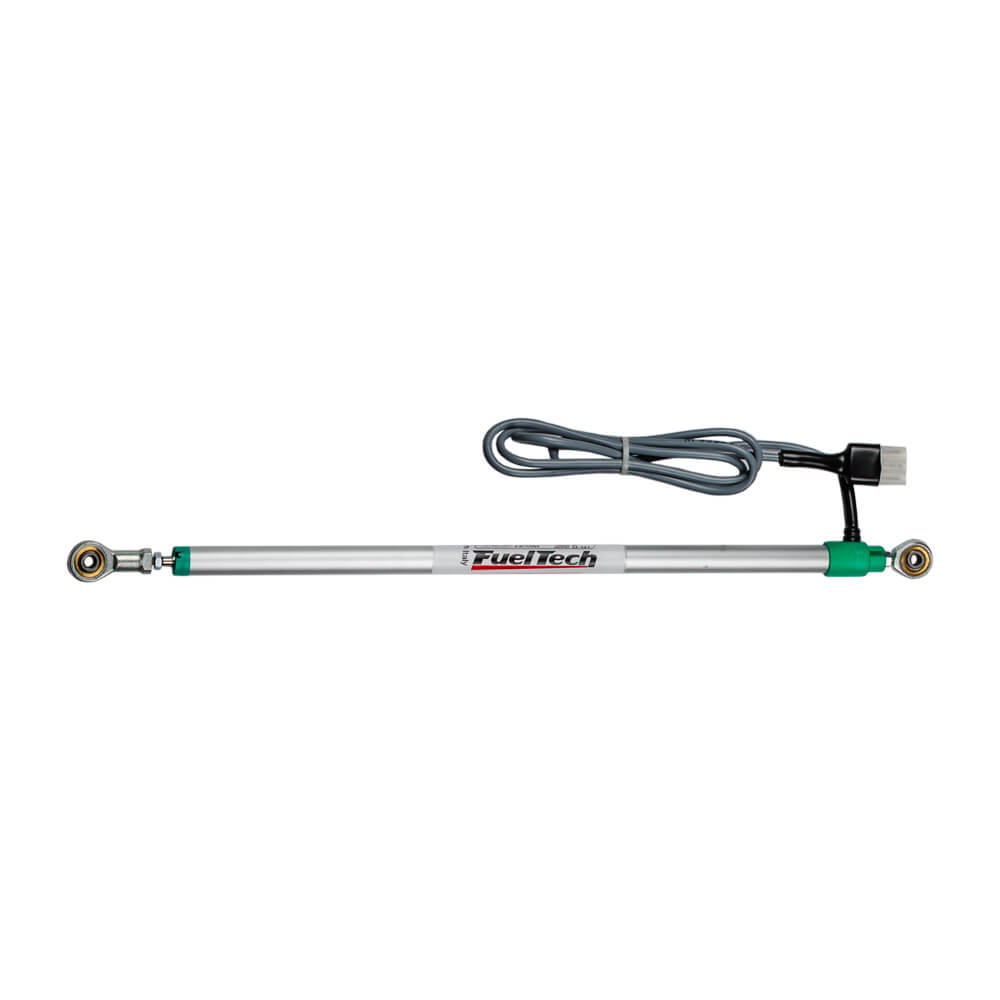

10" Travel Sensor:

  • Total Travel: 10"
  • Length Closed: 16"
  • Length Extended: 26"
  • Mounting: 5mm Heim joints
  • Cable Length: 41"

Voltage/Output:

  • Supply voltage: 5V
  • Signal Output: 0.5V - 4.5V

Connector Pinout:

  • Pin 1 - Ground (Brown)
  • Pin 2 - Signal (Yellow)
  • Pin 3 - 5V (Blue)
