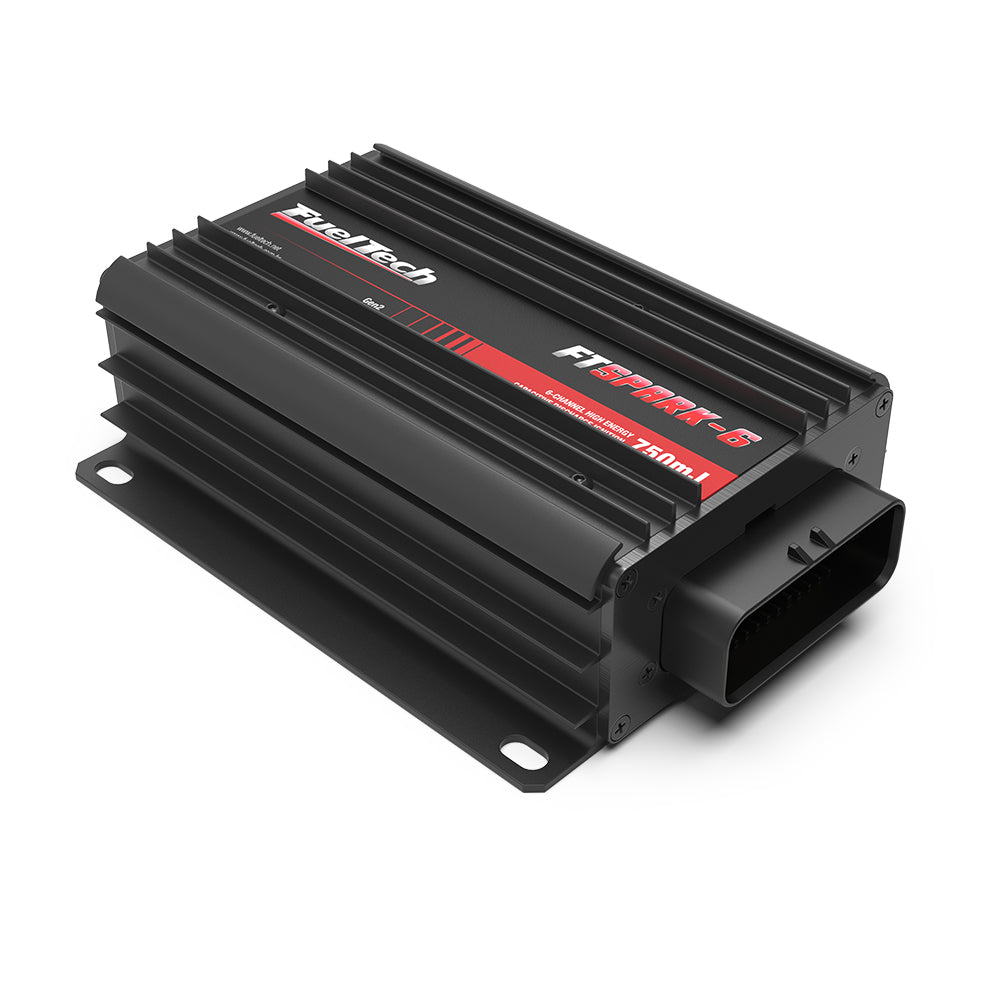

FTSPARK-6 GEN II - 750mJ

5022007545

$1,899.00

Shipping Cut-Off:  USPS 9:30am EST / UPS 1:00pm EST

  • The FuelTech FTSPARK-6 Ignition is an extremely high-energy Capacitive Discharge Ignition (CDI) system engineered to meet the most demanding spark requirements in racing. Designed for high-horsepower combinations and proven on 5,000+ horsepower engines, the FTSPARK is built to deliver exceptional performance.

    This high-performance ignition system is compatible with any ECU on the market, ensuring seamless integration. The FTSPARK generates up to 750mJ of spark energy and can deliver 140 Amps of current in the primary coil. With this configuration, it delivers 5 times more spark energy and 10 times more current than typical ignition systems, ensuring reliable combustion even in rich air-fuel ratios.

  •  FTSPARK Manual

Key Features:

  • Generates up to 750mJ of spark energy and 140 Amps of current in the coil primary.
  • Compatible with all ECUs, providing flexibility for a variety of racing setups.
  • Delivers significantly more spark energy and current than SparkPRO, ensuring strong ignition under any condition.
  • Available in models for 4-, 6-, or 8-coil applications.

Technical Specifications:

  • Programmable energy adjustment via CAN or digital input.
  • Operates with 475V in the primary coil to reduce interference.
  • Features CAN communication with FuelTech PowerFT and VisionFT ECUs for diagnostics and datalogging.
  • Durable anodized aluminum and plastic case.
  • Maximum working temperature: 212°F.
  • Power requirements: 14-26V for full operation, with a minimum starting voltage of 8V.
  • Maximum operating frequency: 670 Hz.
  • Automotive connector with gold-plated terminals for enhanced conductivity.
  • Compatible with other ECUs; contact FuelTech for compatibility details.

Product Dimensions:

  • FTSPARK-6 Module: 4.92" x 6.02" x 1.97"
  • Packaging: 8.78" x 6.38" x 2.36"

Weight:

  • FTSPARK-6 GEN II 750mJ: 31.22 oz (Ignition Module), 39.33 oz (Packaging), 34.22 oz (Wiring Harness)

What’s Included:

  • 1 FTSPARK-6 (GEN II 750mJ) module
  • Installation and operation manual
  • Mounting hardware kit (4 rubber mounts, 8 washers, 8 nuts)

Warranty:

  • 1-year worldwide warranty
