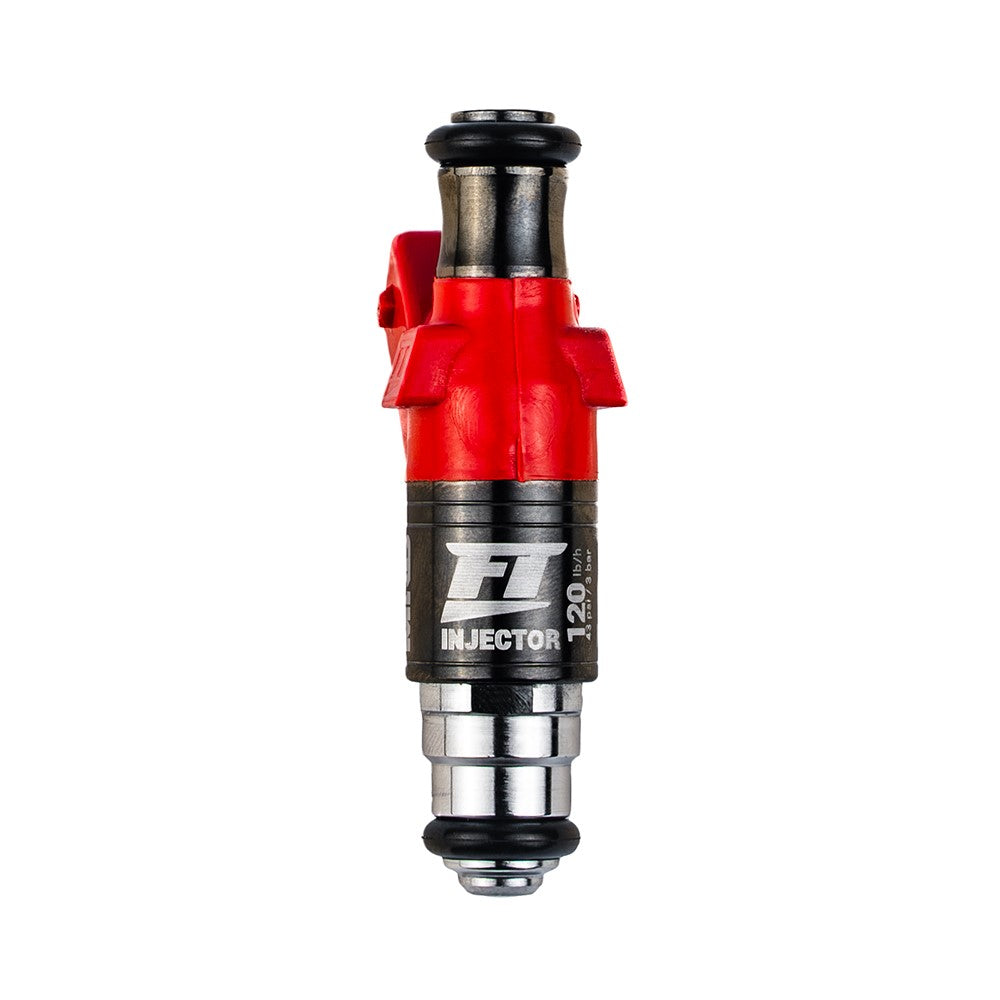

FT Injector 120 lb/h

5010113192

$189.00

Shipping Cut-Off:  USPS 9:30am EST / UPS 1:00pm EST


  • The FT Injector 120 lb/hr (1,260 cc/min @ 43.5 psi) is a high impedance fuel injector from the FT Injector family, no Peak and Hold driver is required. The FT Injector is compatible with all available fuels (gasoline, ethanol, alcohol, nitromethane, nitropropane, MTBE and ETBE). Featuring EV1 connectors with silver plated terminals for superior conductivity and corrosion resistant internal components.

FEATURES


  • REAL flow, all injectors are tested, and calibrated to ensure linearity, repeatability and accuracy for all cylinders.
  • It has internal components resistant to corrosion, guaranteed by the salinization test carried out on all raw material used.
  • Compatible with any type of fuel (Gasoline, Ethanol, nitromethane, nitropropane, MTBE and ETBE)
  • Compatible with any ECU on the market
  • FuelTech warranty and support
  • Project developed prioritizing the quality and durability of the injector.
FuelTech FT Injector Base Flow Chart - Racing Fuel Injectors

TECHNICAL DESCRIPTION

  • High impedance
  • Coil resistance: (8.2 - 8.1) Ohms
  • Ingress protection Rating: IP67 / NEMA6



DIMENSIONS:

1 - Overall height - 74 mm (2.91”)

2 - Overall width - 18 mm (0.71”)

3 - Top O-ring diameter - 14.50 mm (0.56”)

4 - Tip - 4.1 mm (0.16”)

5 - Bottom O-ring diameter - 14.50 mm (0.56”)



PRODUCT CONTENT:

      • 1 FT Injector
      • 1 Manual

WARRANTY: 90 days
