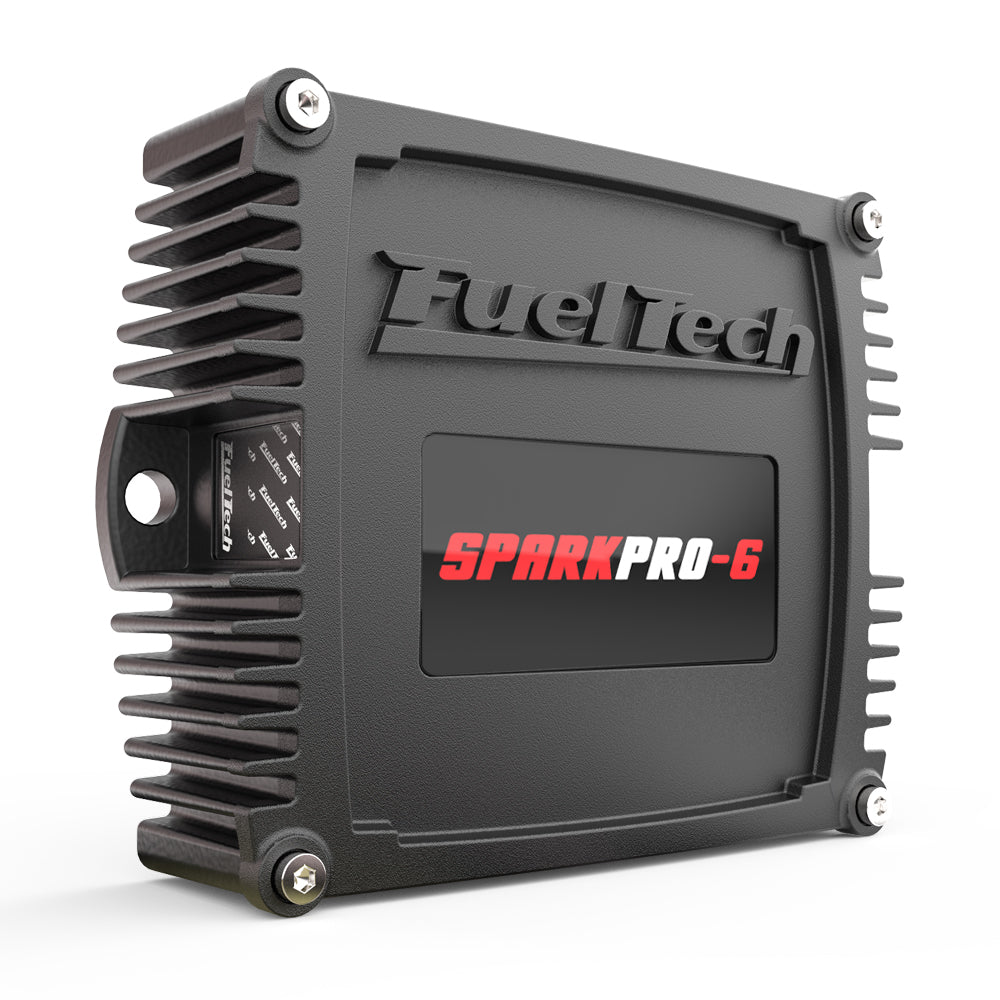

SparkPRO-6

3010003331

$329.00

Shipping Cut-Off:  USPS 9:30am EST / UPS 1:00pm EST

  • SparkPRO-6 is a high-energy inductive ignition module for ignition coils without an igniter (dumb coils). The SparkPRO-6 has 6 ignition outputs, each output may be connected to only one coil at a time, and is available in versions from 1 to 8 ignition outputs. It has a high voltage of up to 430V at the coil’s primary.
  •  SparkPRO Manual

Features

  • High energy inductive ignition
  • SparkPRO-6 - 6 ignition outputs
  • Available in versions from 1 to 8 ignition outputs
  • High Voltage at the coil’s primary: up to 430V



Technical Description

  • Used only with “dumb” coils (coils without igniter)
  • Each SparkPRO channel can be connected to only one coil at a time
  • Compatible with any programmable ECU that has dwell control
  • Cannot be used with stock ECU
  • Dimensions: 115 x 90 x 33mm

Contents of Packaging

  • 1 SparkPRO-6
  • 1 Operation and installation guide
  • 1 FuelTech black carbon fiber sticker

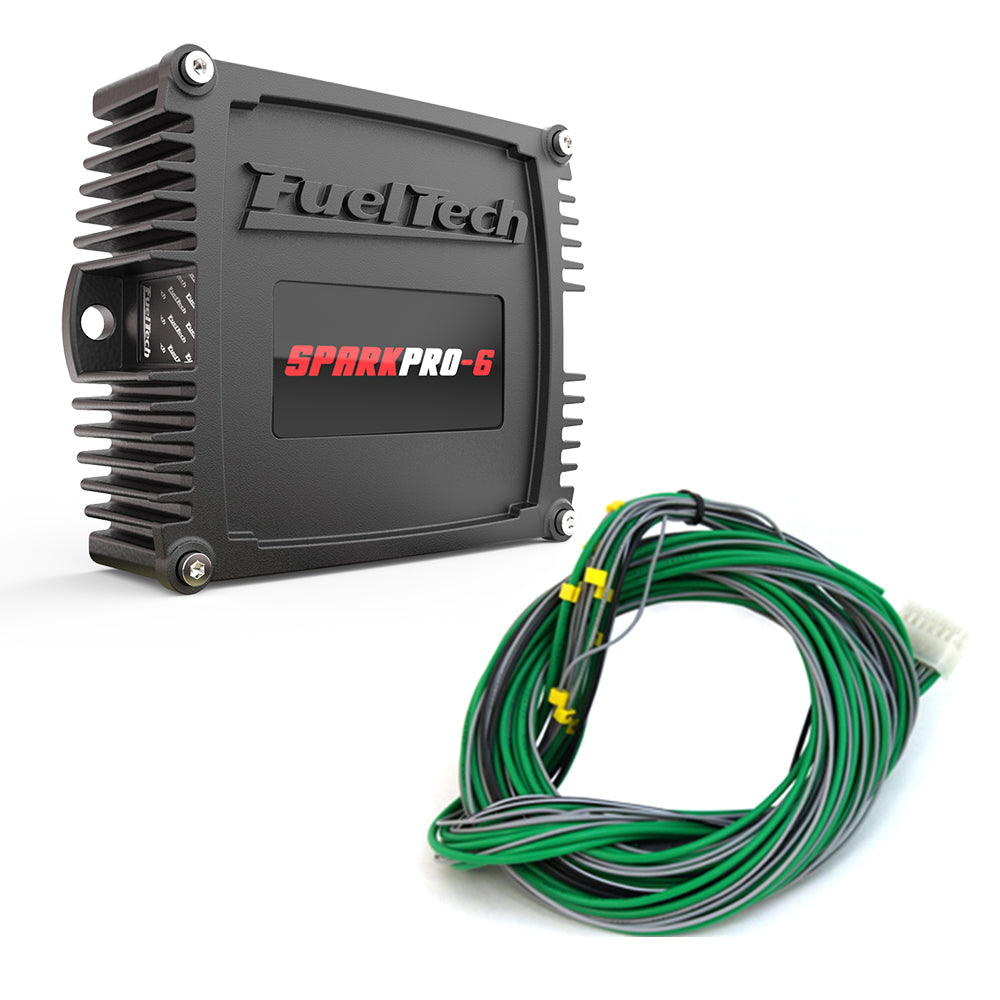

SparkPRO-6 Ignition Wiring Harness Sold Separately.
