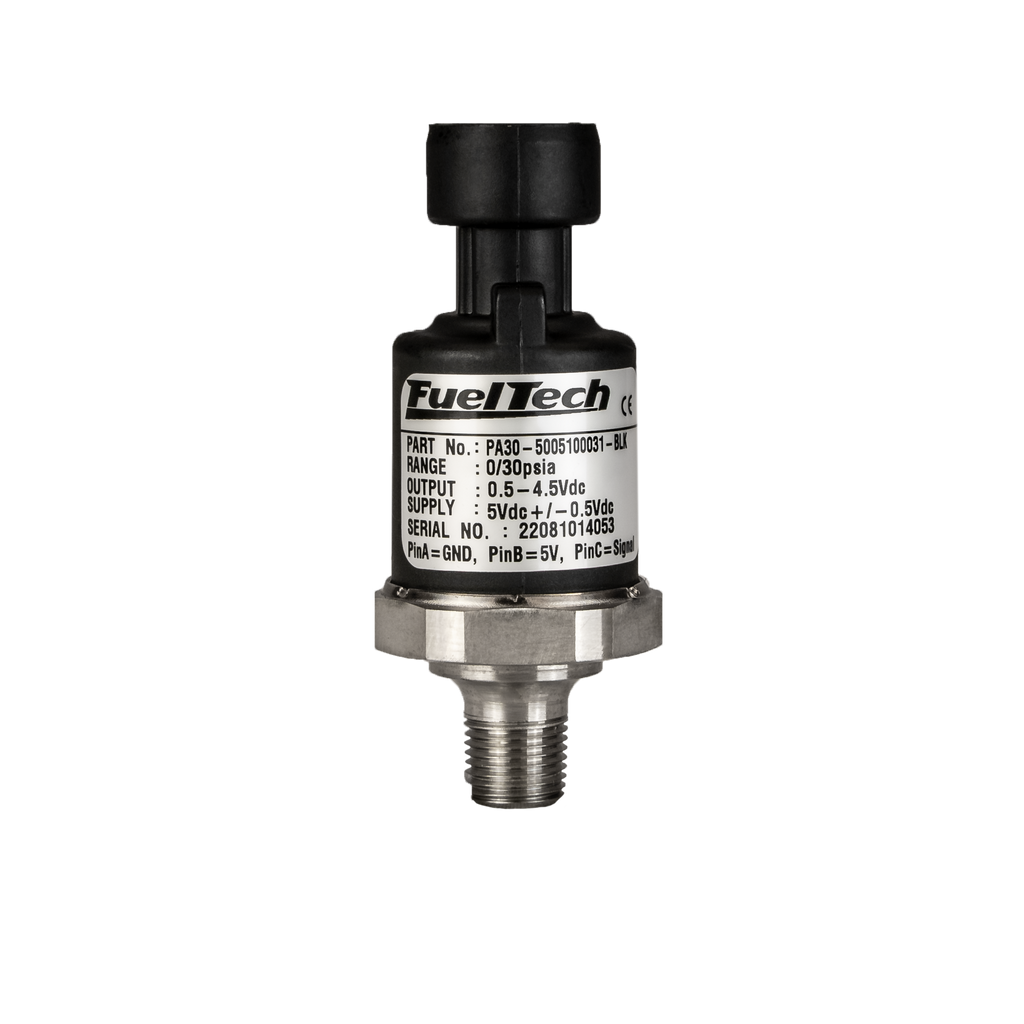

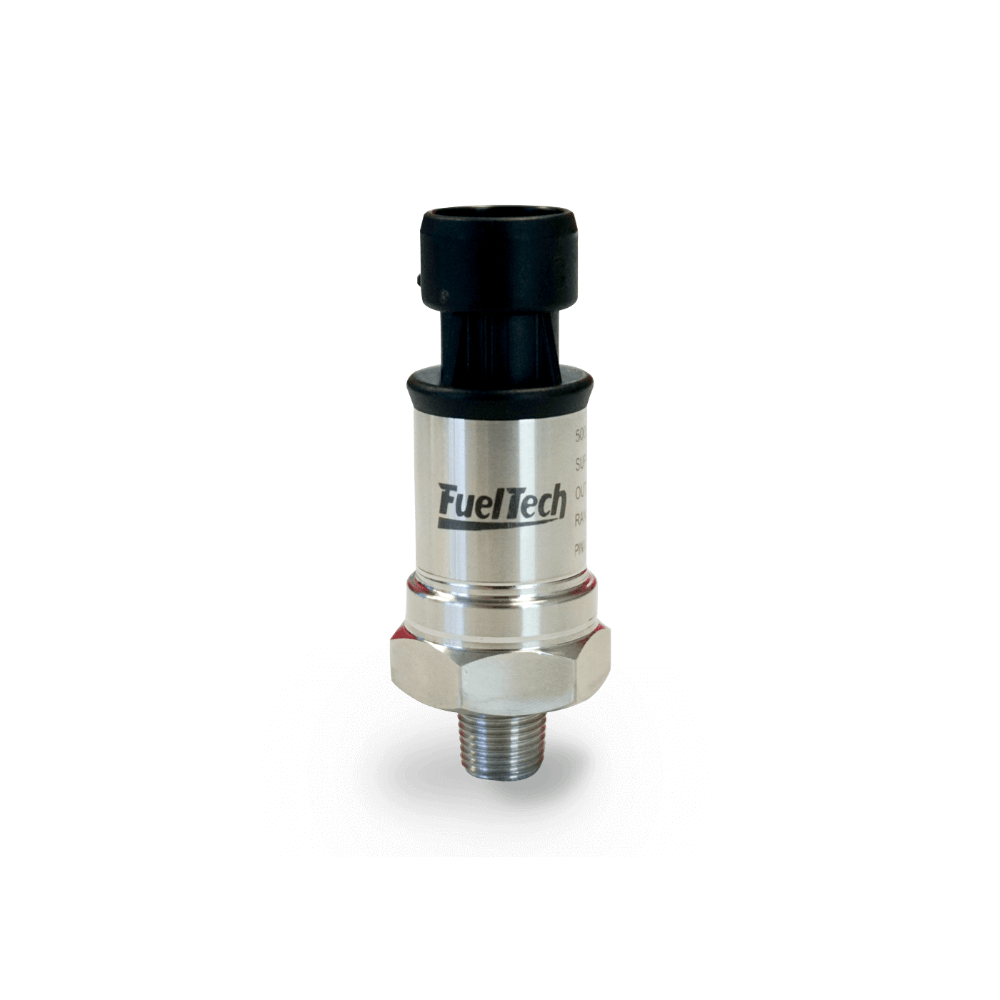

Pan Vacuum Sensor

5005100031-BLK / 5005100023

$187.00

Monitor crankcase vacuum inside your engine to make sure piston rings are sealing properly in the cylinders.

  • Output: 0.5-4.5V
  • Supply: 5V
  • Range: -15 psi to +15 psi (0-30 psi absolute)
  • Thread size: 1/8" NPT
Connector Pinout:
  • A - Ground
  • B - 5V
  • C - Signal
