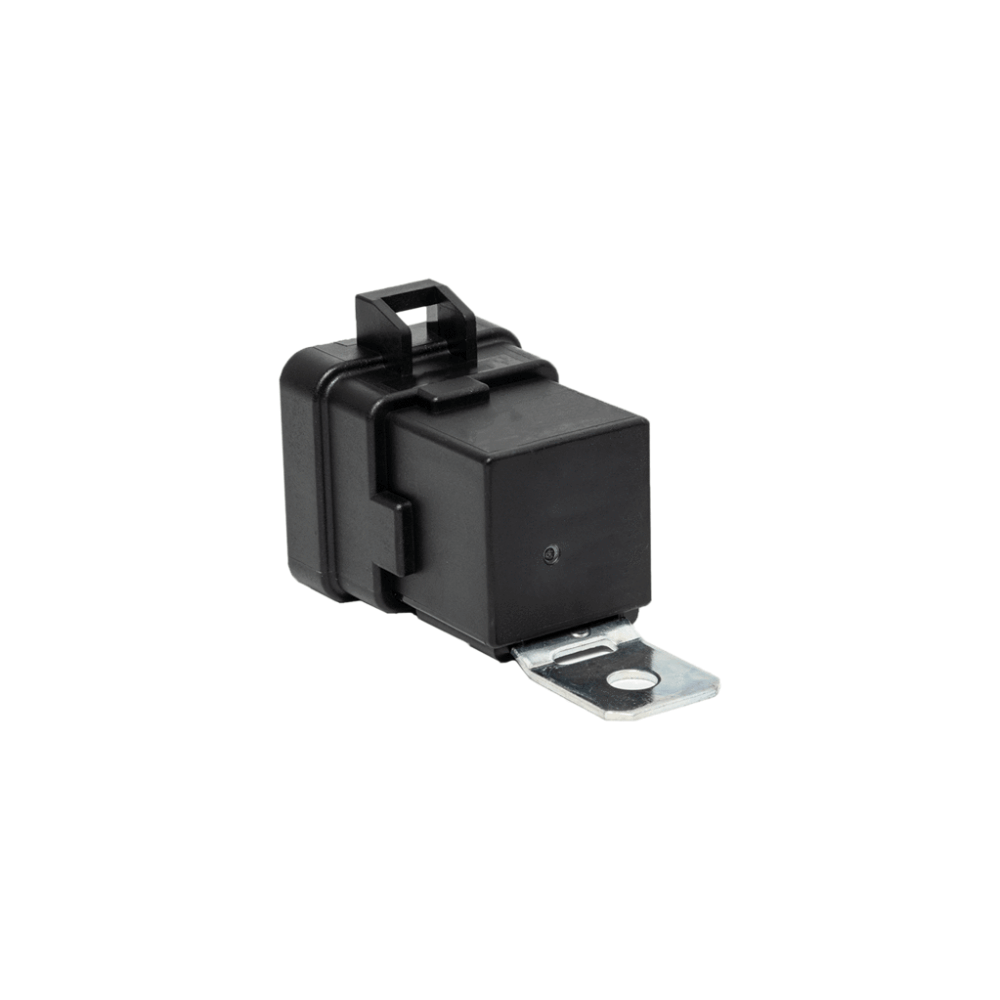

Sealed Relay 40A

3020001919

$22.00

Shipping Cut-Off:  USPS 9:30am EST / UPS 1:00pm EST

High quality sealed relay which is typically used for ECU, injectors, and coils when building your own harness.

One relay required per item being wired.

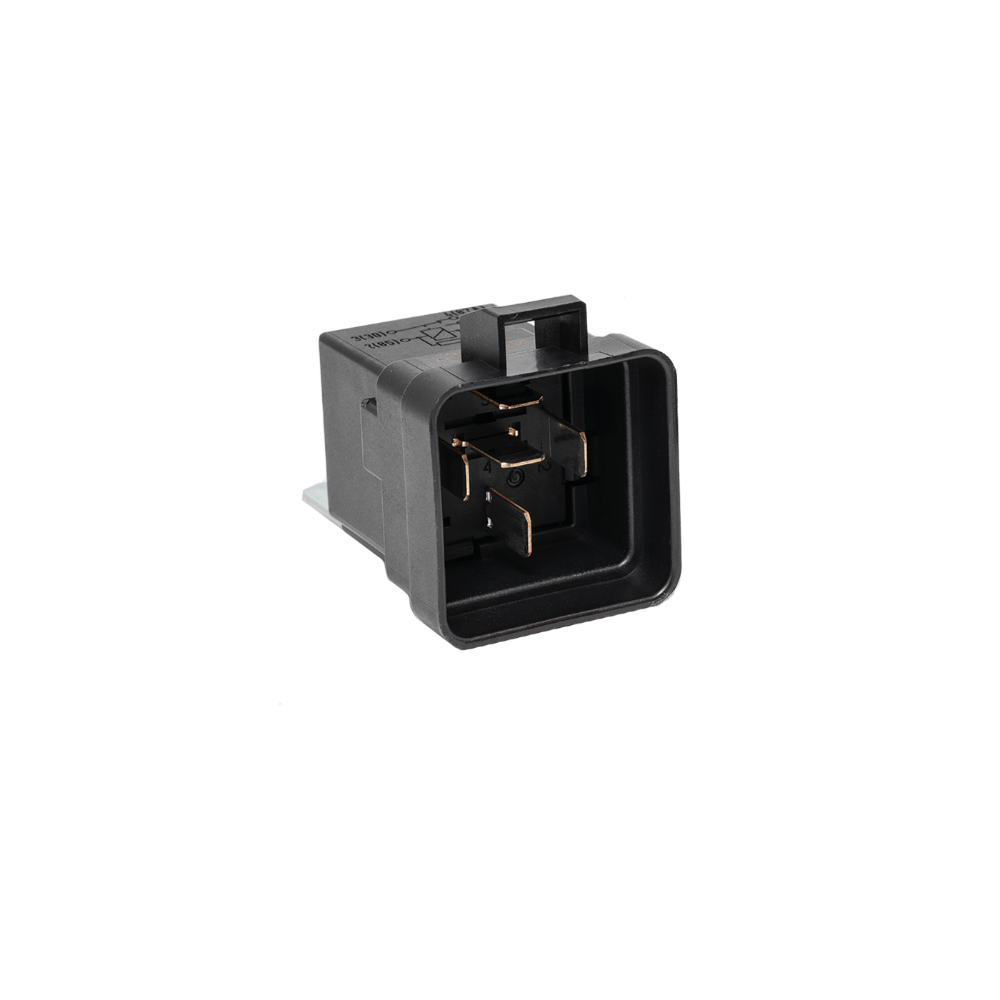

Electrical Connections:
85 - Trigger - FT auxiliary output (activated when switched to ground)
86 - Switched 12V
30 - Battery 12V - Use fuse
87 - Output for load - Normally open contact - 40A
87A -  Normally closed contact
